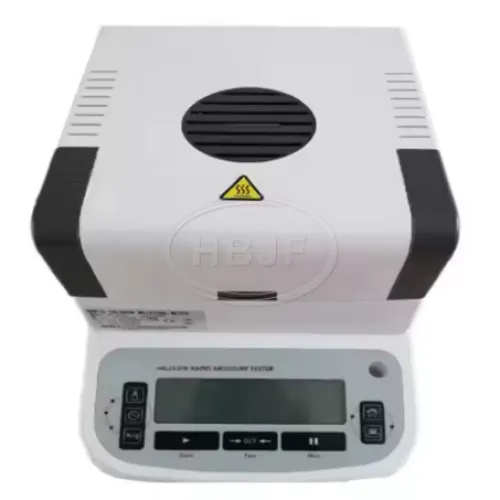

A moisture analyzer is a device that determines the moisture content with the loss on drying method and consists of a weighing and halogen heating unit
Product Description
Suitable for research institute, university and institute, metrology institute, enterprises are widely used in various industries such as plastics, food, feed, powder, tobacco, paper, food, dehydrated vegetables, meat, noodles, flour, cookies, pies, aquatic product processing), tea, beverage, grain, chemical raw materials, pharmaceutical, textile raw materials and so on, contains the free moisture test of the sample
| Model | QL-610A | QL-720A | QL-100A |
| Weighing Accuracy | 0.005g | 0.001g | 0.0001g |
| Load cell | Strain sensor | Electromagnetic force sensor | |
| Moisture readability | 0.01MC | 0.01MC | 0.001MC |
| Solid content moisture readability | 0.0001 | 0.0001 | 0.00001 |
| Moisture Range | 0.01%-100% | 0.01%-100% | 0.001%-100% |
| Solid content range | 100%-0.01% | 100%-0.01% | 100%-0.001% |
| Heating temperature range | 40℃~160℃ | 40℃~160℃ | 40℃~200℃ |
| Principle | Thermal weight loss | ||
| Weighing Range | 120g | ||
| Calibration Method | External weight calibration (100g weight) | ||
| Heating Method | Ring halogen lamp heating | ||
| Heating Power | 500W | ||
| Temperature readability | 1℃ | ||
| Temperature Sensor | High-precision ultra-fine platinum and rhodium temperature sensor | ||
| Display Mode | Moisture content, solid content, drying rate, weight after drying, moisture regain, real-time temperature, graph | ||
| Shutdown Mode | Automatic, timing, manual | ||
| Time Setting | 0~99 minutes (1 minute interval) | ||
| Sample Pan | Ø102mm stainless steel | ||
| Communication Interface | Thermal printing (directly print out the moisture value and solid content) | ||
| Standard RS232 communication interface, which can be connected to PC, printer and other peripheral equipment | |||
| Voltage | 220V, 50Hz / 110V, 60Hz | ||
| Size | 310*200*205mm | ||
| Weight | 3.5kg | 4.3kg | 4.3kg |
